Bridge Pro
Staged Heating Equipment Interface
For ductless heat pumps staged with boilers or electric baseboards.
Exclusive product to Flair Pros.
Orders containing the Bridge Pro will ship early February. All items will ship together.
Couldn't load pickup availability
WHAT IS IT?
The Bridge Pro integrates Ductless Heat Pumps (DHPs) with secondary heating sources such as boilers or electric baseboard heaters to enable supplemental and/or staged heating.
The Bridge Pro includes 24 VAC power, Dry and Wet contacts to support up to seven boiler and/or electric baseboard heat zones, and Ethernet, Wi-Fi and 915 MHz network and device communication interfaces.
WHY DO I NEED IT?
The Bridge Pro and Flair hvacOS™ platform delivers a simple to install, cost-effective, and energy-efficient staged heating solution between DHPs and secondary heat sources such as boilers or electric baseboard heaters. The Bridge Pro can also provide access to discounts for both Staged Heating (Integrated Controls) rebates as well as significant additional incentives for the purchase of DHPs in many markets.
Refer to program documentation for rebates. Subject to change.
HOW DO I GET IT?
Flair’s Bridge Pro is available for purchase by qualified dealers, contractors, builders and distributors. Register to become a Flair Pro and our team will reach out.
Are you a homeowner?
Contact us and we'll connect you with a expert contractors who can offer high quality Bridge Pro installations.
What is the Bridge Pro?
The Bridge Pro is a dedicated network hub with the most advanced staged heating control capabilities on the market.
Use of the Bridge Pro offers seamless integration with the Flair app and hvacOS™ platform for full staged heating control, rapid installation without C-Wire pulls, and support for up to seven boiler and/or electric baseboard heating zones.
What is Staged Heating?
Staged Heating, sometimes referred to as 'Integrated Controls' is a heating control strategy that uses multiple heating sources to optimize comfort and energy efficiency.
The first stage typically relies on a ductless heat pump (DHP) or mini split, which provides efficient heating under mild conditions.
When additional heating is needed—such as in colder temperatures—the second stage, typically a boiler or electric baseboard heater, is activated to supplement the heat.

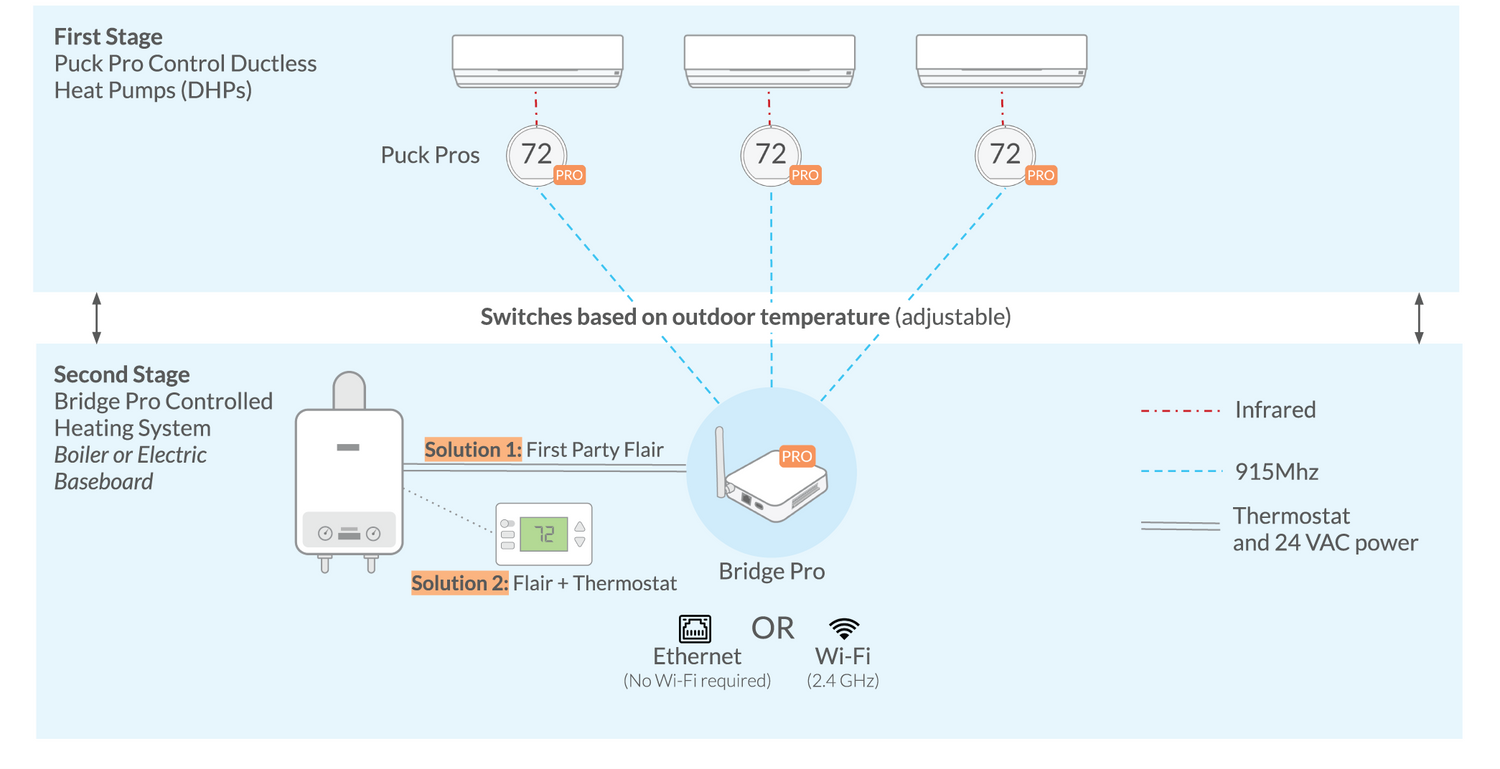

How does the Flair Platform and Bridge Pro Work for Staged Heating?
- The Flair Puck Pro (sold separately) controls the first-stage heating (DHPs) using Infrared (IR) communication.
- For Solution 1 (recommended), the Flair Bridge Pro directly manages the second-stage heating providing seamless, full first-party staged heating.
- For Solution 2, the Bridge Pro serves as a network communication hub, while the existing thermostat manages second stage heating.
Who is the Bridge Pro for?
- HVAC Contractors: Professionals responsible for installing and maintaining heating systems.
- System Integrators: Those configuring multi-stage heating solutions with Flair products.
What You Need
Flair offers two Staged Heating solutions, providing flexible options tailored to your customers HVAC setup, equipment and preferences.
Powered by hvacOS™, Flair automates heat staging based on temperature, weather, and user settings, ensuring optimal comfort and energy efficiency while saving on installation time and cost.
-
Solution 1 | Flair First-Party (Recommended)
The Flair Puck Pro manages first-stage heating (DHPs), and the Bridge Pro controls second-stage heating (boilers or baseboards).
Ideal for homes without smart thermostats or where a first party solution is the best option. It enables quick installation without C-Wire pulls or the need to integrate multiple software platforms.
-
Solution 2 | Flair Using Existing Thermostat(s)
The Flair Puck Pro manages first-stage heating (DHPs), and existing smart thermostats control second-stage heating (boilers or electric baseboards).
Flair Puck Pro
The Puck Pro controls first-stage heating (DHPs) using Infrared (IR) communication.
1 x Puck Pro is required for every indoor unit.
Bridge Pro
The Bridge Pro controls second-stage heating (boilers or baseboards).
1 x Bridge Pro is required per staged heating system.
Required Components for Solution 1 | Flair First-Party
- Flair Puck Pro – Required for controlling ductless heat pumps (DHPs) - one Puck Pro per indoor unit.
- Flair Bridge Pro - Supports up to seven boiler or electric baseboard sones
- Thermostat Wire, Wire Nuts, etc. (Field Supplied) - For electric baseboard heaters, you’ll also likely need junction boxes, strain relievers, etc.
- Line Level Relay(s) (Field Supplied) – For electric baseboard heater installations. Not needed for boiler systems.
- Flair Bridge (Optional) – Network communication hub. Recommended for homes over 2,500 square feet.
- Internet Connection (Wi-Fi or Ethernet) – Required for app connectivity and system control.
- Flair App – Available for iOS and Android for system configuration and management.
Required Components for Solution 2 | Flair Using Existing Thermostat(s)
- Flair Puck Pro – Required for controlling ductless heat pumps (DHPs) - one Puck Pro per indoor unit.
- Smart Thermostat – One per boiler zone.
- Flair Bridge – Network communication hub for Puck Pros and connects to Wi-Fi or Ethernet.
- Internet Connection (Wi-Fi or Ethernet) – Required for app connectivity and system control.
- Flair App – Available for iOS and Android for system configuration and management.
HVAC System Compatibility
- Ductless Heat Pumps (DHPs or Mini Splits) – Must support infrared (IR) control.
- Second-Stage Heating Systems – Must be either a boiler or electric baseboard heater.
- Smart Thermostats – Nest, ecobee, and Honeywell models are supported for integration. Not needed for Puck Pro with Bridge Pro staged heating system.
Network Requirements
- A stable Internet connection (Wi-Fi or Ethernet) is required for Flair devices to communicate effectively.
- Ensure that the network does not have strict firewall settings that could block Flair devices.
